Writing rules and headers

LL::NG manages applications by their hostname (Apache Virtual Hosts or Nginx Block Servers). Rules are used for protecting applications, and HTTP headers are appended to each request for sending data to protected applications (for logs, profiles,…).


Note that variables designed by $xx correspond to the name of the exported variables or macro names except for $ENV{<cgi-header>} which correspond to CGI headers ($ENV{REMOTE_ADDR} for example).

Available $ENV variables

The %ENV hash provides:

  • all headers in CGI format (User-Agent becomes HTTP_USER_AGENT)

  • some CGI variables depending on the context:

    • For portal: all CGI standard variables (you can add custom headers using fastcgi_param with Nginx),


    • For Nginx handler: all variables given by fastcgi_param commands.

  • For Portal:

    • $ENV{urldc} : Origin URL before Handler redirection, in cleartext

    • $ENV{_url} : Origin URL before Handler redirection, base64 encoded

See also extended functions.


You can use %ENV hash or $env hash ref. Both syntaxes are available for compatibity.

$ENV{REMOTE_ADDR} and $env->{REMOTE_ADDR} are similar.


A rule associates a regular expression to a Perl boolean expression or a keyword.




Regular expression


Restrict /admin/ directory to user bart.simpson


Restrict /js/ and /css/ directory to authenticated users



Deny access to /config/ directory



Do not restrict /public/



Do not restrict /skip/ and restrict other to authenticated users


$ENV{REQUEST_URI} =~ /skip/ ? skip : 1

Makes authentication optional, but authenticated users are seen as such (that is, user data are sent to the app through HTTP headers)



Restrict access to the whole site to users that have the LDAP description field set to “LDAP administrator” (must be set in exported variables)


The “default” access rule is used if none rule matches the current URL.


See the rule examples page for few common use cases


  • Comments can be employed for ordering your rules: rules are applied depending on comment alphabetical order (or regexp if no comment is defined). See security chapter to learn more about rules best practice.

  • See performances to learn how using macros and groups in rules.

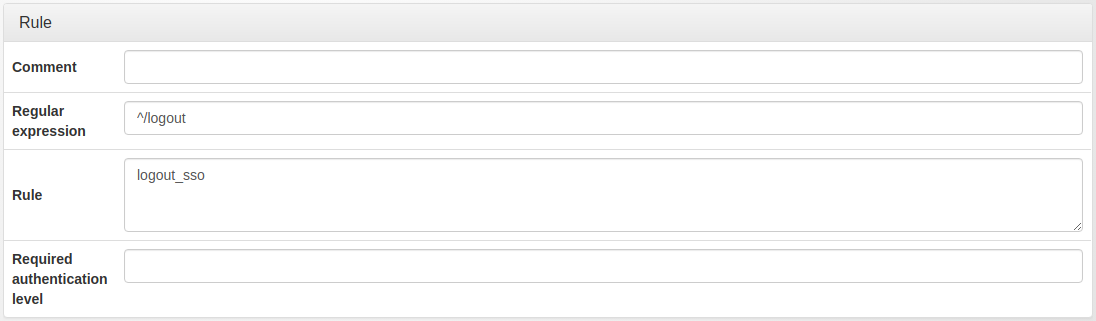

Rules can also be used for intercepting logout URL:


Regular expression


Logout user from Lemonldap::NG and redirect it to http://intranet/


logout_sso http://intranet/

Logout user from current application and redirect it to the menu (Apache only)


logout_app https://auth.example.com/

Logout user from current application and from Lemonldap::NG and redirect it to http://intranet/ (Apache only)


logout_app_sso http://intranet/


For logout_app and logout_app_sso rules to work with Nginx, you need lua module, and you must enable nginx-lua-headers.conf. Also, make sure the header_filter_by_lua and corresponding error_page directives are present in the appropriate “location” section. See test-nginx.conf for more information.

By default, users will be redirected to the Portal if no URL is defined, or to the specified URL if exists.


Only current application is concerned by logout_app* targets. Be careful with some applications which does not check headers sent by LL::NG after having created their own application cookies. If so, you can redirect users to a HTML page that explain that it is better to close browser after logout.

Rules based on authentication level

LL::NG set an “authentication level” during authentication process. This level depends on authentication backend used by this user. Default values are:

There are three ways to impose users a higher authentication level:

  • writing a rule based on authentication level: $authenticationLevel > 3

  • since 2.0, set a minimum level in virtual host options (default value for ALL access rules)

  • since 2.0.7, a minimum authentication level can be set for each URI access rule. Useful if URI are protected by different types of handler (AuthBasic -> level 2, Main -> level set by authentication backend).


Instead of returning a 403 code, “minimum level” returns users to a form that explains that a higher level is required and propose to reauthenticate himself.


Headers are associations between an header name and a perl expression that returns a value. Headers are used for sending user data to protected applications.



Header name

Header value

Give the uid (for accounting)



Give a static value



Give display name


“$givenName $surName”

Give a non ASCII data


As described in performances chapter, you can use macros, local macros,…


  • Since many HTTP servers refuse non ASCII headers, it is recommended to use encode_base64() function to transmit those headers

  • Do not forget to add an empty string as second argument to encode_base64 function to avoid a “newline” characters insertion in result: encode_base64($string, '')

  • Header names must contain only letters and “-” character. With Nginx, you can bypass this restriction by using underscores_in_headers on; directive


By default, SSO cookie is hidden. So protected applications cannot retrieve SSO session key. But you can forward this key if absolutely needed (NOT recommanded because can be a security issue):

Session-ID => $_session_id

Available functions

In addition to macros and name, you can use some functions in rules and headers:

Wildcards in hostnames

image1 Since 2.0, a wildcard can be used in virtualhost name (not in aliases !): *.example.com matches all hostnames that belong to example.com domain. Version 2.0.9 improves this and allows better wildcards such as test-*.example.com or test-%.example.com. The % wilcard doesn’t match subdomains.

Even if a wildcard exists, if a VirtualHost is explicitly declared, this rule will be applied. Example with precedence order for test.sub.example.com:

  1. test.sub.example.com

  2. test%.sub.example.com

  3. test*.sub.example.com

  4. %.sub.example.com

  5. *.sub.example.com

  6. *.example.com (%.example.com does not match test.sub.example.com)
